Aluminium windows

With aluminium windows and aluminium doors, BARTYN expands its range with modern, durable solutions for new builds, larger glass surfaces and architecturally demanding projects.

Aluminium is particularly suitable where stability, narrow sightlines, large glazing and a permanently low-maintenance construction are required. Based on proven profile systems from ALUPROF and Aliplast, we create window and door solutions with a clear design language, high weather resistance and good thermal and sound insulation properties.

Your advantages:

  • stable constructions for larger glass surfaces
  • modern, slim look
  • good thermal and sound insulation
  • high weather resistance
  • low-maintenance, long-lasting surfaces
  • flexible solutions for windows and doors

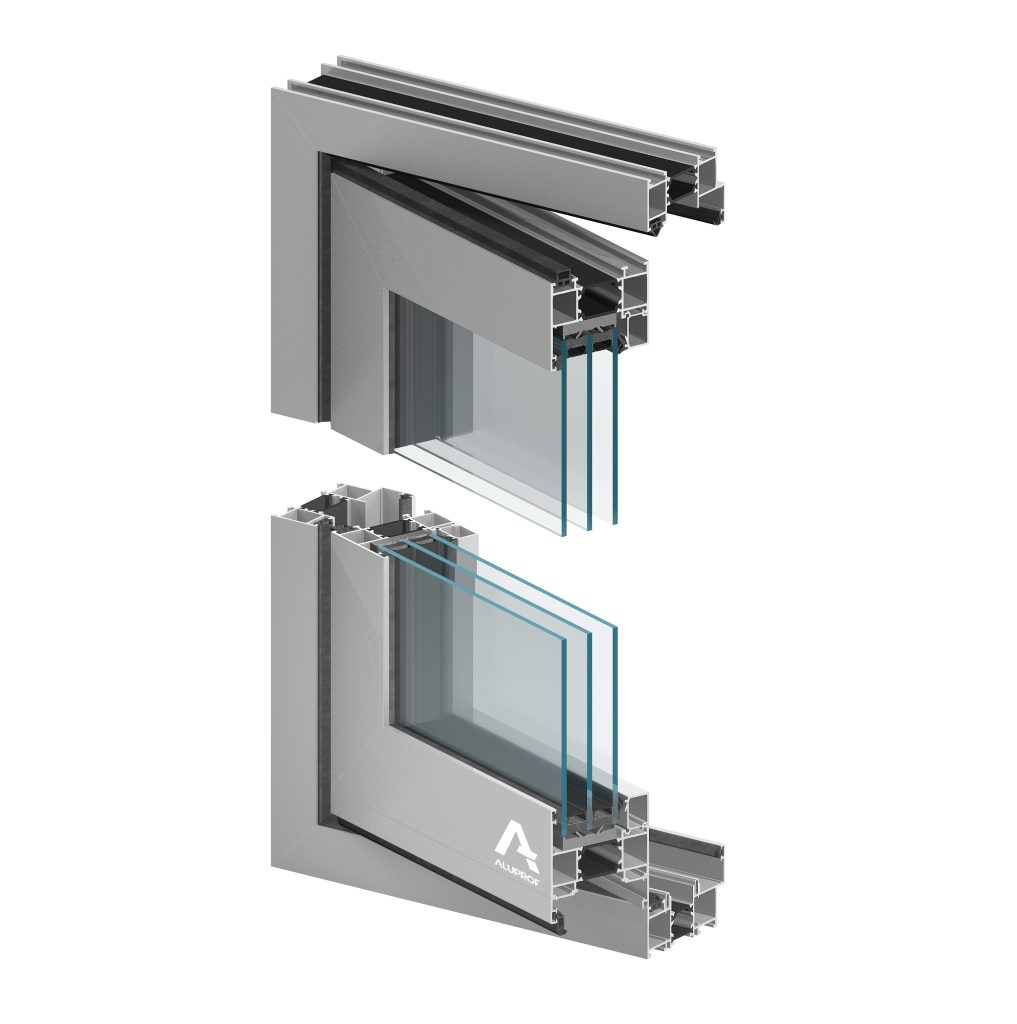

MB-70

MB-70 is a modern aluminum system for the execution of thermally and acoustically insulated architectural components in outdoor construction.

Learn more MB-70

MB-86N

The system allows the construction of various window and door structures and the use of panels with a wide range of thicknesses, so we can obtain products with very good properties, tailored to the specific needs of a particular facility.

Learn more MB-86

MB-104 Passive

The window and door system with a thermal barrier MB-104 Passive with the highest level of thermal insulation meets all the requirements placed on the elements used in passive house construction. This system is used to execute architectural elements.

Learn more MB-104 Passive

MB-86 Fold Line HD

Folding doors for outdoor use give the user a lot of freedom. With these doors, favorable weather conditions can be exploited and the barrier between the interior of the building and its surroundings can be almost eliminated.

Learn more MB-86 Foldline

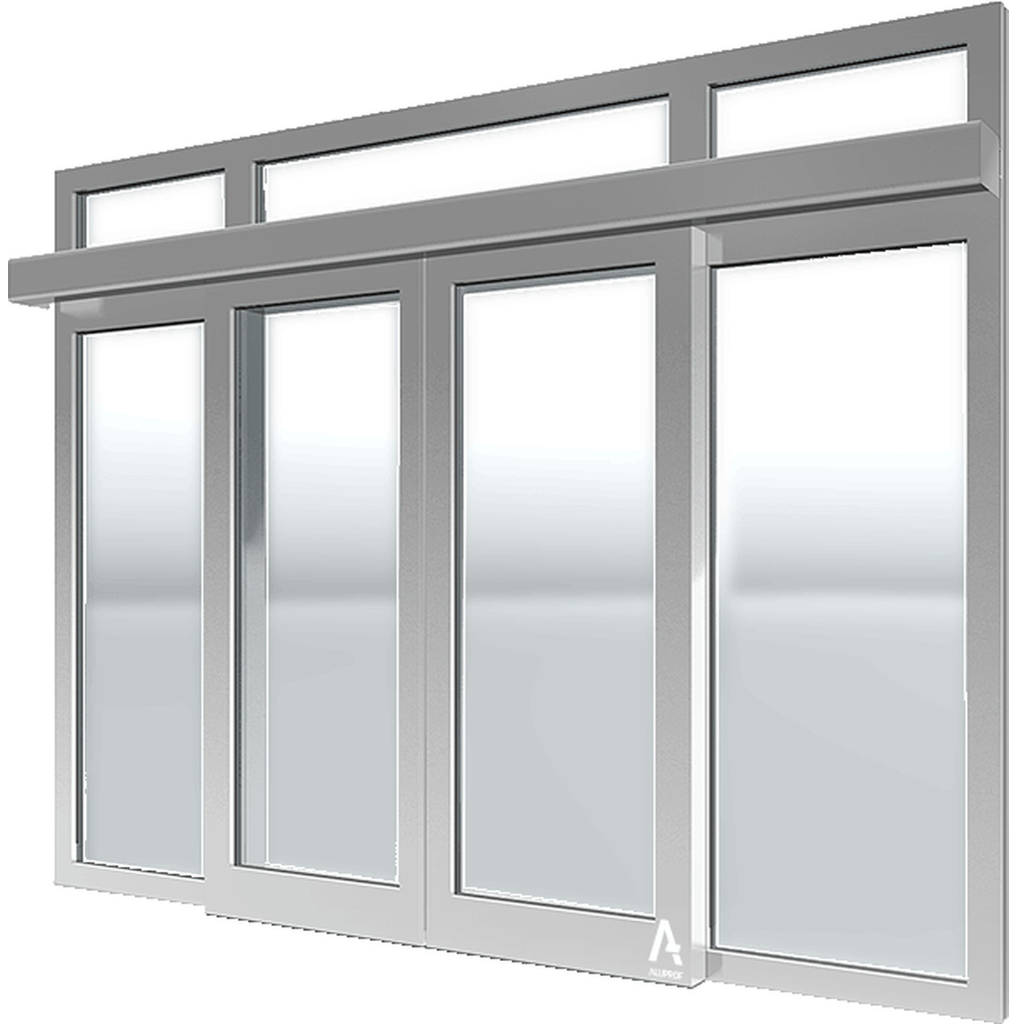

MB-DPA

Sliding doors are an aesthetic, safe and comfortable solution. Due to their properties, they are used in small buildings as well as in large office buildings or shopping centers.

Learn more

Enquire now

Technical specification

  • Structural depth, windows (frame / sash): 70 mm / 79 mm
  • Structural depth, doors (frame / leaf): 70 mm / 70 mm
  • Heat transfer coefficient Uf (frame): 1.5 to 2.39 W/(m²K)
  • Glazing thickness, window casements: 21 to 57 mm
  • Glazing thickness, fixed windows and door leaves: 12 to 48 mm
  • Structural depth, frame (window / door): 77 mm / 77 mm
  • Structural depth, leaf (window / door): 86 mm / 77 mm
  • Thermal insulation, windows: Uw from 0.62 W/(m²K) (fixed glazing SI, Ug 0.5) / from 0.68 W/(m²K) (openable)
  • Thermal insulation, doors: UD from 0.80 W/(m²K)
  • Max. size, window (H × W): H to 3000 mm × W to 1700 mm
  • Air permeability: class 4, EN 12207
  • Structural depth, windows (frame / sash): 95 mm / 104 mm
  • Structural depth, doors (frame / leaf): 95 mm / 95 mm
  • Heat transfer coefficient (window / door): UW/D ≤ 0.80 W/(m²K)
  • Certificate: Passivhaus Institut Darmstadt (PHI)
  • Infill thickness (frame / window sash): 26.5 to 71.5 mm / 35.5 to 80.5 mm
  • Max. leaf weight (windows / doors): 160 kg / 200 kg
  • Structural depth (frame / door panels): 86 mm / 77 mm
  • Number of panels: structures with up to 8 panels
  • Max. panel weight: 120 kg
  • Panel dimensions: height to 3000 mm, width 700 to 1200 mm
  • Glazing thickness: 13.5 to 61.5 mm
  • Type: Automatically and manually operated sliding doors
  • Depth of leaf profiles (thermally insulated): 50 mm (MB-59S Casement) / 70 mm (MB-70 Casement, MB-79N Casement)
  • Depth of leaf profiles (non-insulated): 45 mm (MB-45)
  • Drives: standard drive gear supported (e.g. Geze, Dorma, Besam, Esco)
